The Deva CMM system packages offer a complete hardware solution for CMM machine control. The packages are based on well established Deva004 CMM controller card, new Deva030 compact servo amplifier and highly innovative Deva031 colour touch screen joystick.
Packages are further enhanced by a variety of Deva018 interpolation and Deva028 readerhead pre-amp options.
The Deva004 CMM controller based packages enjoy a wide range of existing third party software support.
The Deva031 colour touch screen joystick adds a new dimension to CMM machine control and CMM software packages are now able to offer a range of exciting features via the touch screen.
Designed for left or right handed operation the Deva031 is very lightweight and comfortable to use with the speed wheel and main button easily operated by the thumb of the hand holding the device. The other hand is then free to operate the joystick, option button and touch screen.
All packages are supplied with comprehensive connector and cable packs. These include all cables between the Deva004, Deva030 and Deva031.
Whilst connectors are supplied for all Deva030 connections, installation is completed with the addition of the motor cables, reader head cables and discrete machine IO wiring.
Packages
CMMSYSTEMPACKA Complete system Deva004 CMM controller, Deva030 servo amplifier, Deva031 joystick
CMMSYSTEMPACKB System comprising Deva004 CMM controller and Deva030 servo amplifier
CMMSYSTEMPACKC System comprising Deva004 CMM controller and Deva031 joystick
Amplifier options
3DCE 3 DC servo axes
4DCE 4 DC servo axes
PSU7 48Vdc 360W servo supply universal mains input
PSU8 48Vdc 700W servo supply universal mains input
PSU9 60Vdc 360W servo supply universal mains input
PSU10 60Vdc 700W servo supply universal mains input

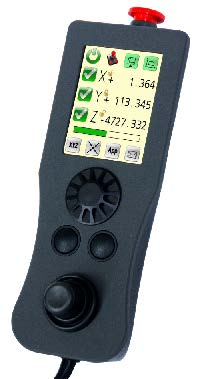

New Deva 031 colour touchscreen advanced Joystick
3 axis hall effect joystick
Speed wheel and two function buttons
High resolution colour touchscreen
Easy to use graphic interface
Hardwired Emergency Stop Button ( Cat 2 )
Supported by most popular CMM packages
|
 |
|

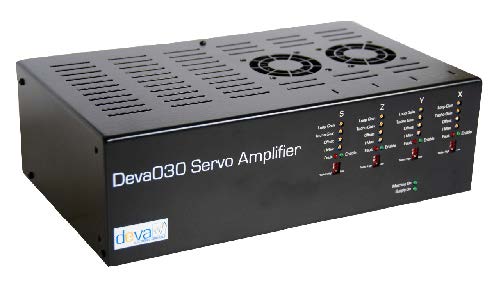

New Deva 030 compact servo amplifier
12A peak / 6 A continuous per motor
Optional 48/60Vdc motor voltage
Brushed motor support
Adjustable current limit per motor
Easy potentiometer tuning
Built-in machine E-stop control logic
Internal 24Vdc machine supply
|
Well established Deva 004 CMM controller
3/4 axes of servo control
Fully featured integrated probe cycles
Linear, circular, helical & spherical interpolation
Extensive joystick probing options
16/12 opto-isolated digital inputs & outputs
|
 |
Please Contact Us to Get a Quote! |
